PANIGALE V4 US-DRYPACK FIT KIT
PANIGALE V4 US-DRYPACK FIT KIT
DUCATI PANIGALE V4 & V4S (excluding the V4 Speciale), V2, Streetfighter V4, Streetfighter V4 S & Streetfighter V2 fitting hardware for US-Drypacks.
The kit consists of high quality hypalon & nylon webbing loops, that easily fit under the pillion seat using the existing mounting locations.

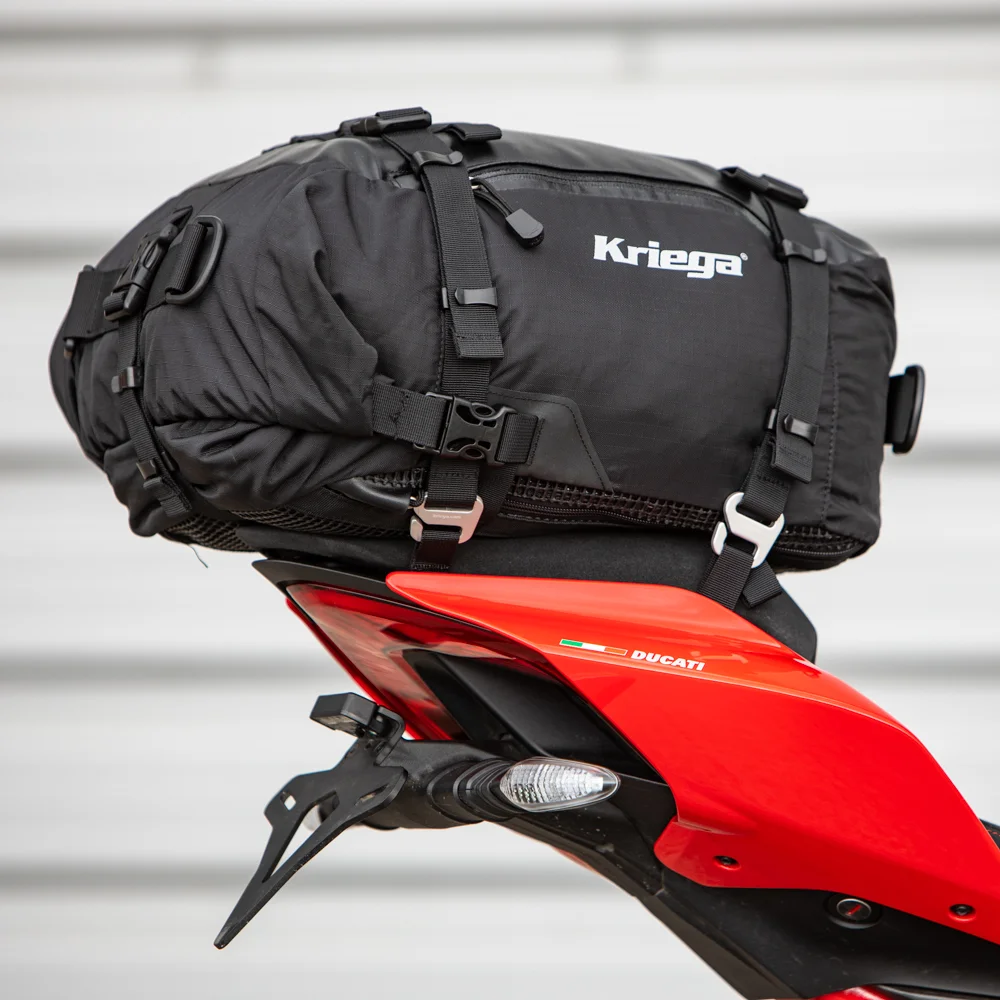

Once fitted, they provide strong hook-on points for any Kriega US-Drypack or US-Drypack Combo.
PACK CONTENTS
1 x webbing strap
2 x bolt-on loops - 65mm - 5mm hole
2 x M5 allen head bolts
4 x M5 washers
PRODUCT CODE
KAPV4FK
WEIGHT
20g
FITTING GUIDE
Remove the pillion seat, unscrew and remove the rear cover.
Slide the webbing strap over the rear plastic with the loops facing upwards. (top view)
Locate the webbing between the inner and outer plastics, this maybe a tight fit.
Once secured, then replace the rear cover.
(underneath view)
Slide an M5 washer inside each hypalon end of the 2 x bolt-on loops.
Add another M5 washer on top and screw in position using the M5 allen head bolts as illustrated here.
Replace the pillion seat and you have four hook-on points to mount any of the range of Kriega US-Drypacks.
